myGel™ Mini Electrophoresis System

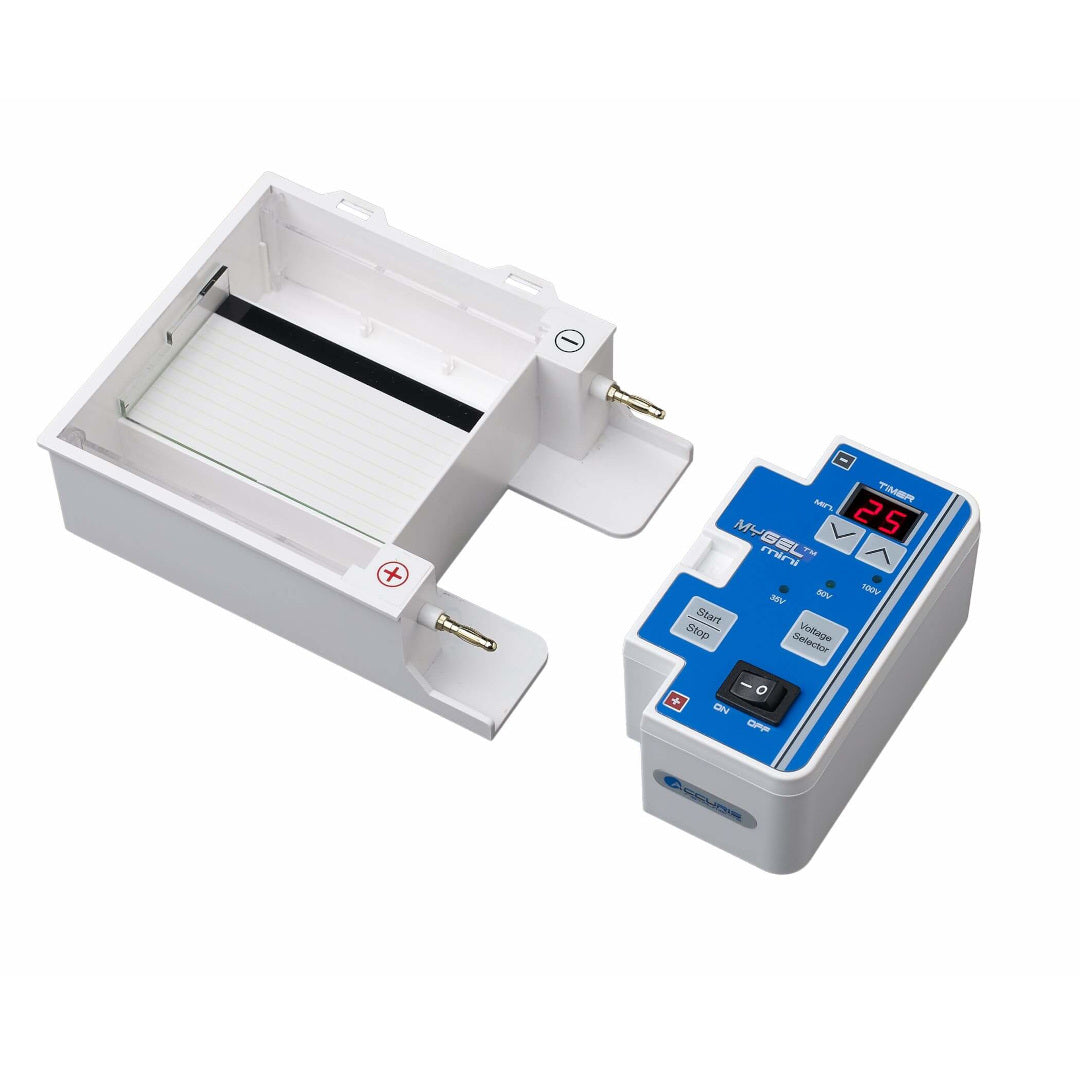

The myGel™ Mini Electrophoresis System includes all the equipment you need to get up and running - gel tank, power supply and 2 complete casting sets. Ideal for personal use, small laboratories, or the classroom, this gel box/power supply combination is compact and easy to use.
Couldn't load pickup availability
The myGel mini gel box attaches directly to the power supply for a secure connection everytime. Selectable parameters include 3 preset voltages – 35V, 50V or 100V – and a 99 minute timer. All are set using the memberane keypad.
The safety lid is vented to help dissipate heat generated during electrophoresis, and features a viewing area above the gel. Current will only run through the system when the lid is properly in place on top of the gel box.
- Complete system, includes gel box, power supply and casting sets
- Quick and easy gel casting, no tape, clamps or spacers required
- Compact design, footprint: 7 x 5.1 in.
| Specifications | |
|---|---|
| Output Voltage | 35V, 50V or 100V |
| Timer | 0 to 99 minutes or continuous |
| Safety | Magnetic & mechanical Lid interlock |
| Maximum Buffer | 230 mL |
| Gel Capacity | One 10.5 x 6cm or Two 5 x 6cm |
| Dimensions | 7.5 x 5.1 x 2.1 in. |
| Weight | 1lb / 0.45kg |
| Electrical | 115V or 230V, 50-60HZ |
